TD-625 Flameless Heater

TD-625

The TD-625 excels at providing 625,000 BTUs of clean, dry heat. Ideal for applications where an open flame or spark-risk is out of the question.

TD-625 Flameless Heater

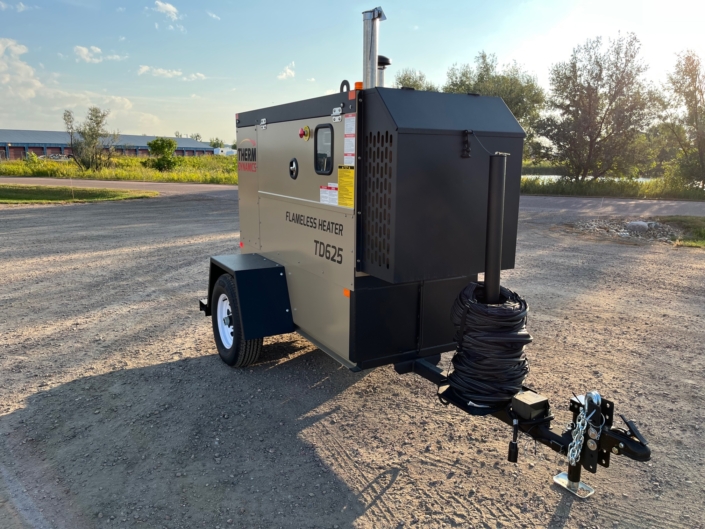

TD-625 Detail
TD-625 Side View

No flame. No fumes. No fuss.

Ideal for applications where an open flame or spark-risk is out of the question; the TD625 excels at providing 625,000 BTUs of clean, dry heat.

The patented technology uses a diesel power engine to agitate hydraulic oil in flameless, sparkless, low-pressure environment. In addition, an overspeed air intake shutoff valve is standard equipment. The oil is heated and circulated, not burned, providing a clean pollution free discharge to the target environment.

Safety features are incorporated to protect the investment of your Therm Dynamics heater. All heaters are equipped with a set of four shut-off switches that terminate the engine when excessive pressures, speed or water temperatures are detected.

625,000 BTU Output
UL733-2013 & CSA Certified
92%+ Efficiency
Dual Engine Options

Key Features

Advanced features for versatile heating applications

Remote Site Thermostat Control

Control temperature remotely for optimal comfort

Duct Storage

Convenient on-board storage for ductwork

Torsion Axle

Smooth towing and transportation

Double Fuel Containment

Optional double containment for added safety

Technical Specifications

Detailed technical specifications for the TD-625

Fuel Type

Diesel #2

Max BTU Output

625,000 BTU

Efficiency

92%+

CFM

4,500+ CFM

Static Pressure

3.5"

Temperature

180°F

Max Fuel Consumption

4.9 GPH

Power Plant

Kohler 2504 (74HP - No DEF)
CAT 2.2L (74HP - No DEF)

Weight (Empty)

3,300 lbs

Weight (Full)

Approx. 4,420 lbs

Cabinet Height

6'6"

Overall Length

12'4"

Overall Width

5'6"

Fuel Capacity

200 Gallons
150 Gallons Double Containment

Certifications

UL733-2013 & CSA B 140.8.1967(R2015)
Report #: 0489HH001S

');">

Ready to Purchase?

Contact us today to discuss your TD-625 requirements and get a custom quote.
