TD-1250L Flameless Heater

TD-1250L

The TD-1250L excels at providing 1.25 Million BTUs of clean, dry heat. Ideal for applications where an open flame spark risk is out of the question.

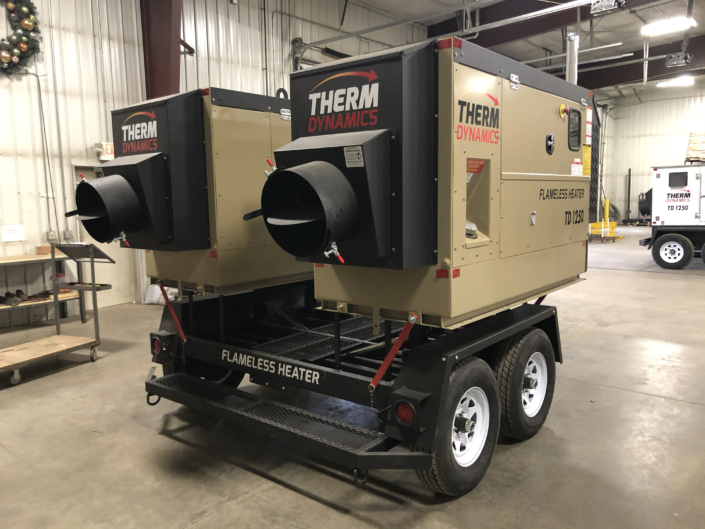

TD-1250L Flameless Heater

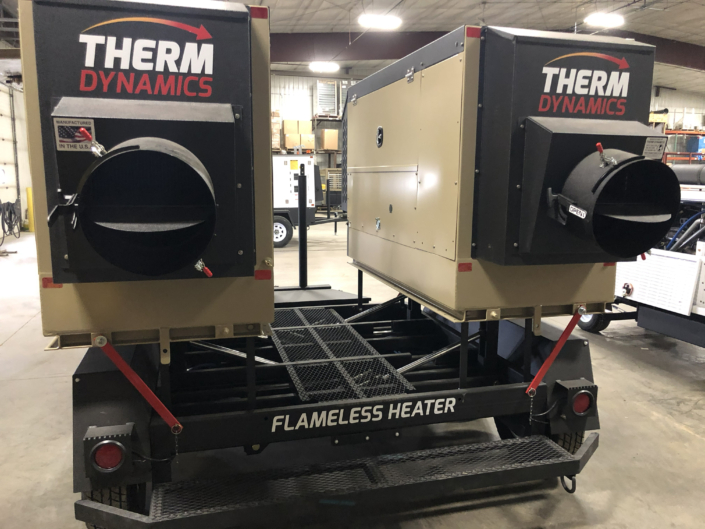

TD-1250L Detail
TD-1250L Side View

No flame. No fumes. No DEF.

Ideal for applications where an open flame spark risk is out of the question; the TD1250L excels at providing 1.25 Million BTUs of clean, dry heat.

The patented technology uses two diesel powered engines to agitate hydraulic oil in a flameless, sparkless, low-pressure environment. In addition, an overspeed air intake shut-off valve is standard equipment. The oil is heated and circulated, not burned, providing a clean pollution-free discharge to the target environment.

Safety features are incorporated to protect the investment of your Therm Dynamics heater. All heaters are equipped with a set of four shut-off switches that terminate the engines when excessive pressures, speed or water temperatures are detected.

1,250,000 BTU Output
UL733-2013 & CSA Certified
90%+ Efficiency
Dual Engine Design

Key Features

Advanced features for industrial heating applications

Remote Site Thermostat Control

Control temperature remotely for optimal comfort

Duct Storage

Convenient on-board storage for ductwork

Torsion Axle

Smooth towing and transportation

Technical Specifications

Detailed technical specifications for the TD-1250L

Fuel Type

Diesel #2

Max BTU Output

1,250,000 BTU

Efficiency

90%+

CFM

9,000 CFM

Static Pressure

7.0"

Temperature

180°F

Max Fuel Consumption

9.8 GPH

Power Plant

2-2504D KOHLER

Weight (Empty)

7,400 lbs

Cabinet Height

7'10"

Overall Length

14'0"

Overall Width

8'4"

Fuel Capacity

240 Gallons Standard
400 Gallons Optional

Certifications

UL733-2013 & CSA B 140.8.1967(R2015)
Report #: 0489HH001S

');">

Ready to Purchase?

Contact us today to discuss your TD-1250L requirements and get a custom quote.
